Black Bearing Steel Grit, Bearing Angular Steel Grit Used For Granite Cutting
We have our own in-house quality control system. Chemical component analysis, Hardness testing, Density Testing, Fatigue life testing all available. We are serious and strict for the quality control of our abrasives.
Also we have good cooperation with SGS Qingdao branch, more testing available if you need, such as Abrasive Conductivity Testing.
Black Bearing Steel Grit, Bearing Angular Steel Grit Used For Granite Cutting Specifications :
| Price | Contact Us |
| Place of Origin | Shandong, China |
| Payment Terms | T/T, L/C, Western Union, etc. |
| Delivery Detail | 10-25 working days. |
| Keyword | Bearing Steel Grit |
Black Bearing Steel Grit, Bearing Angular Steel Grit Used For Granite Cutting Detail Introduction :

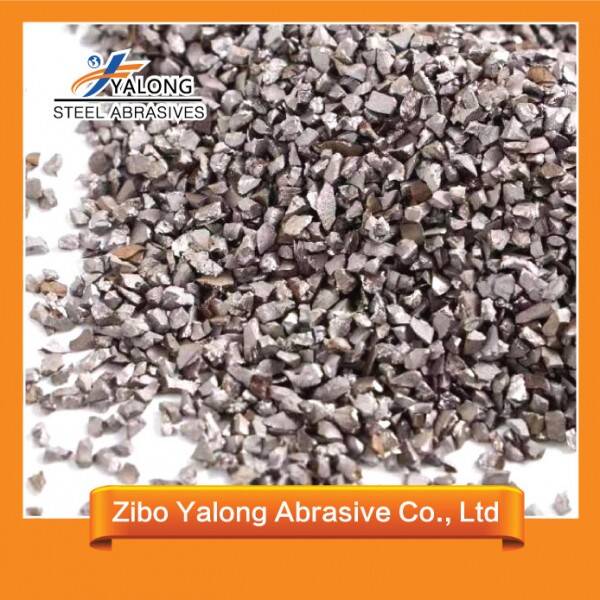

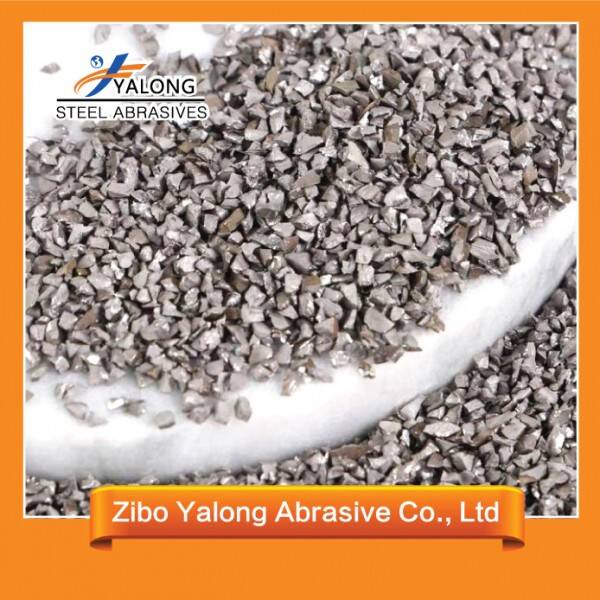

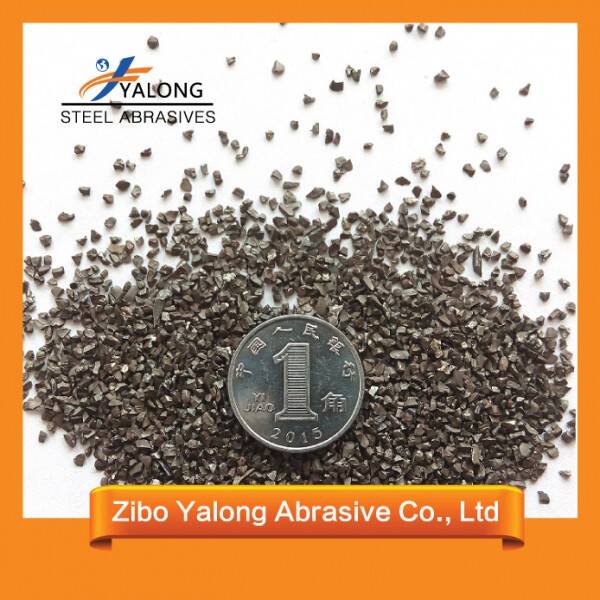

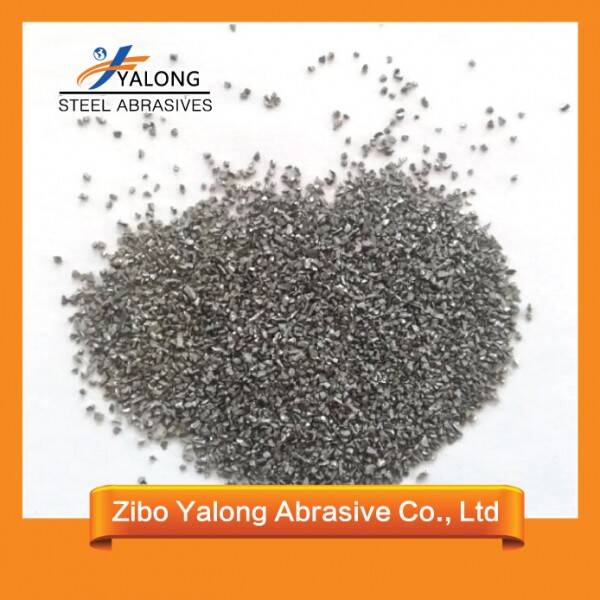

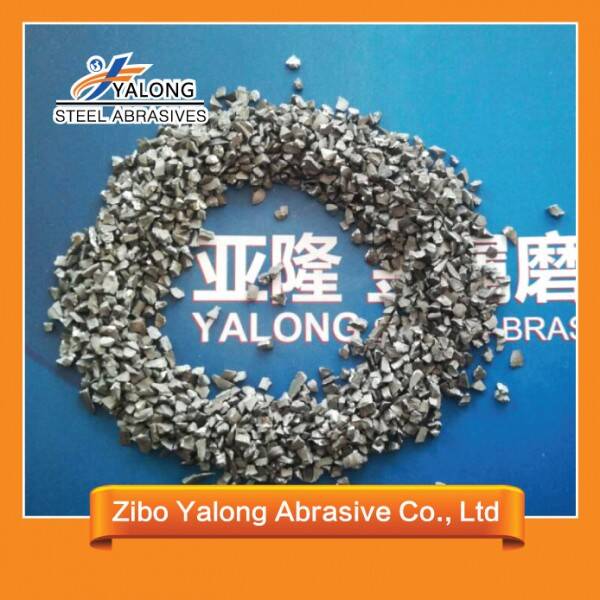

Bearing Angular Steel Grit
Raw material is non casting bearing steel, it is crushed after quenching, then it is tempered. Product features with wear resistance and high impact toughness. According to different application, steel grit is devided into below 3 types:
GH: Hardness>60HRC. This type is specially developed for granite cutting with stable performance, uniform grain size and high wear resistant. It has been approved by our customers that angular steel grit are sharper, faster cutting speed than arc steel grit and sawing surface finished is flatter and smoother. GL: Hardness 53-60HRC
It is angular shape in the originals and is gradually ground round, especially applicable to removing the oxygenated surface, cleaning of metal parts and shot peening .
GP: Hardness 40-50HRC
The hardness is lowest, in the process of the abrasives blasting. Its edges are removed slowly, especially applicable to removing the oxygenated surface, cleaning of metal parts and pre-treatment.
Physical Properties:
Product | STEEL GRIT GH/GL/GP10-120 | |
Chemical Composition | C | 0.80-1.20 |
Mn | 0.20-1.20 | |
Si | 0.15-1.20 | |
S | ≤0.05 | |
Cr | 0.60-1.60 | |
P | ≤0.05 | |
Hardness ( HRC ) | 60-66(GH) 50-60(GL) 40-50(GP) | |
Density (g/cm3) | 7.4 | |
Durability | 2000-2800 times | |
Metallographic Structure | Fine and Homogeneous Tempered Troosite | |
C Level | <2 | |
